Professional LED wall configuration and production planning for macOS. Spec screens, generate wiring diagrams, gear lists, and media guides all in one place.

Download for Mac Mac App Store

macOS 14 Sonoma or later  ·  Apple Silicon & Intel

What's New →

What It Does

Everything you need to spec an LED show

🖥️

Screen Configuration

Build LED walls panel by panel. Set dimensions, pixel pitch, processor, redundancy, and brightness. Supports custom tile addition and configurations.

⚡

Signal & Power Planning

Auto-generated signal port assignments and power wiring diagrams using standard 6 circuit Socapex delivery. Supports most standard processors.

🔧

Gear List

Automatic equipment quantity calculations — processors, XD boxes, cabling, rigging, and more. Customizable templates with per-screen and per-group modes.

💻

Media Guide Export

Generate pixel-accurate media server mapping guides as PDFs. Canvas positions, raster zones, and screen coordinates ready to hand off to your media team.

📝

Grid & Summary Export

Export full-resolution screen grid images, SVG layouts, and summary PDFs. Includes JSX for After Effects and CSV for spreadsheet workflows.

📦

Inventory Tracking

Import your house inventory CSV and see in-stock quantities directly in the gear list. Know what you have before the quote goes out.

In Action

Built for the way you work

Screen Editor

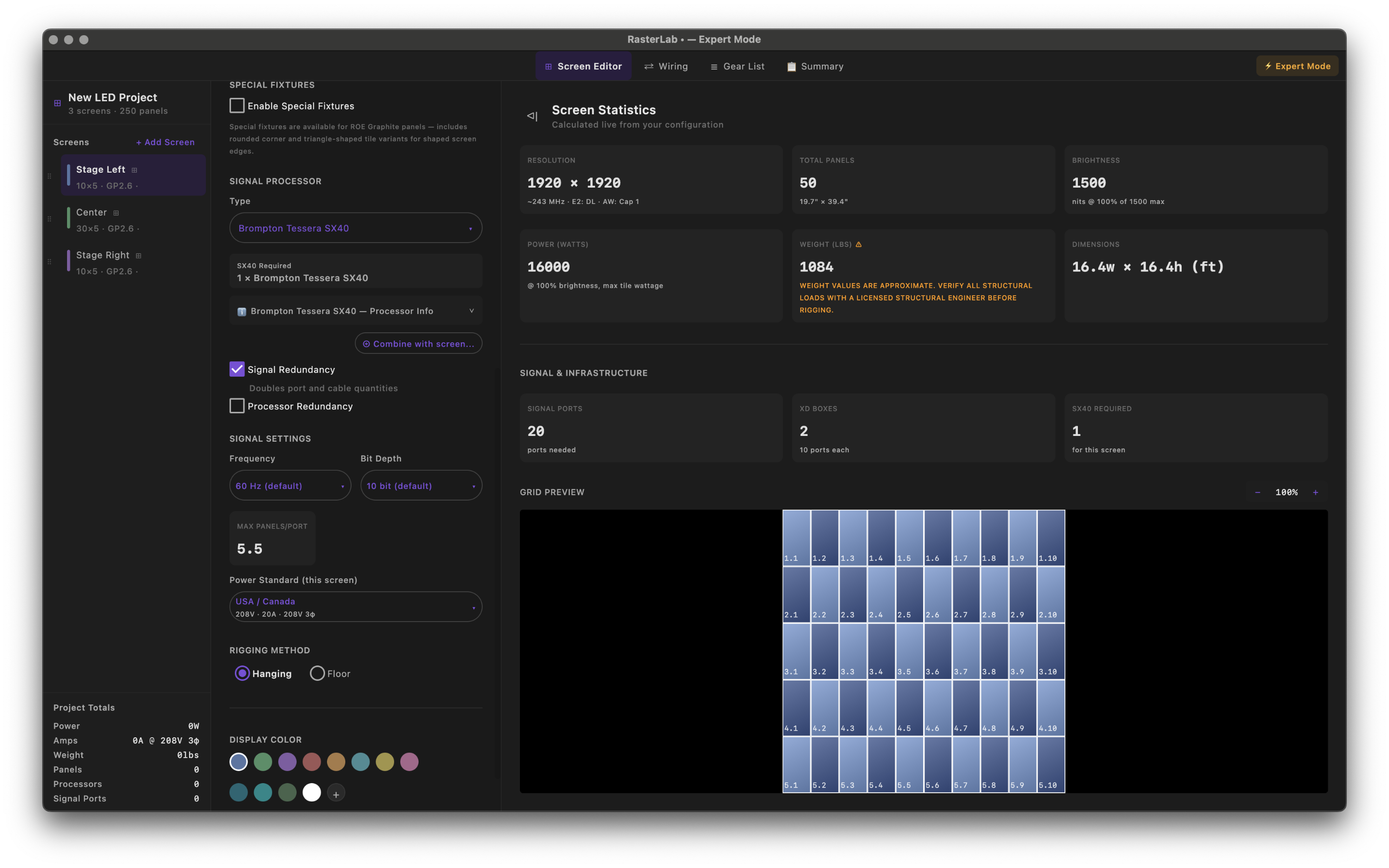

Screen Editor — configure panels, processor, and canvas positioning
Processor Groups
Combine screens into shared processor groups
Signal Wiring Diagram

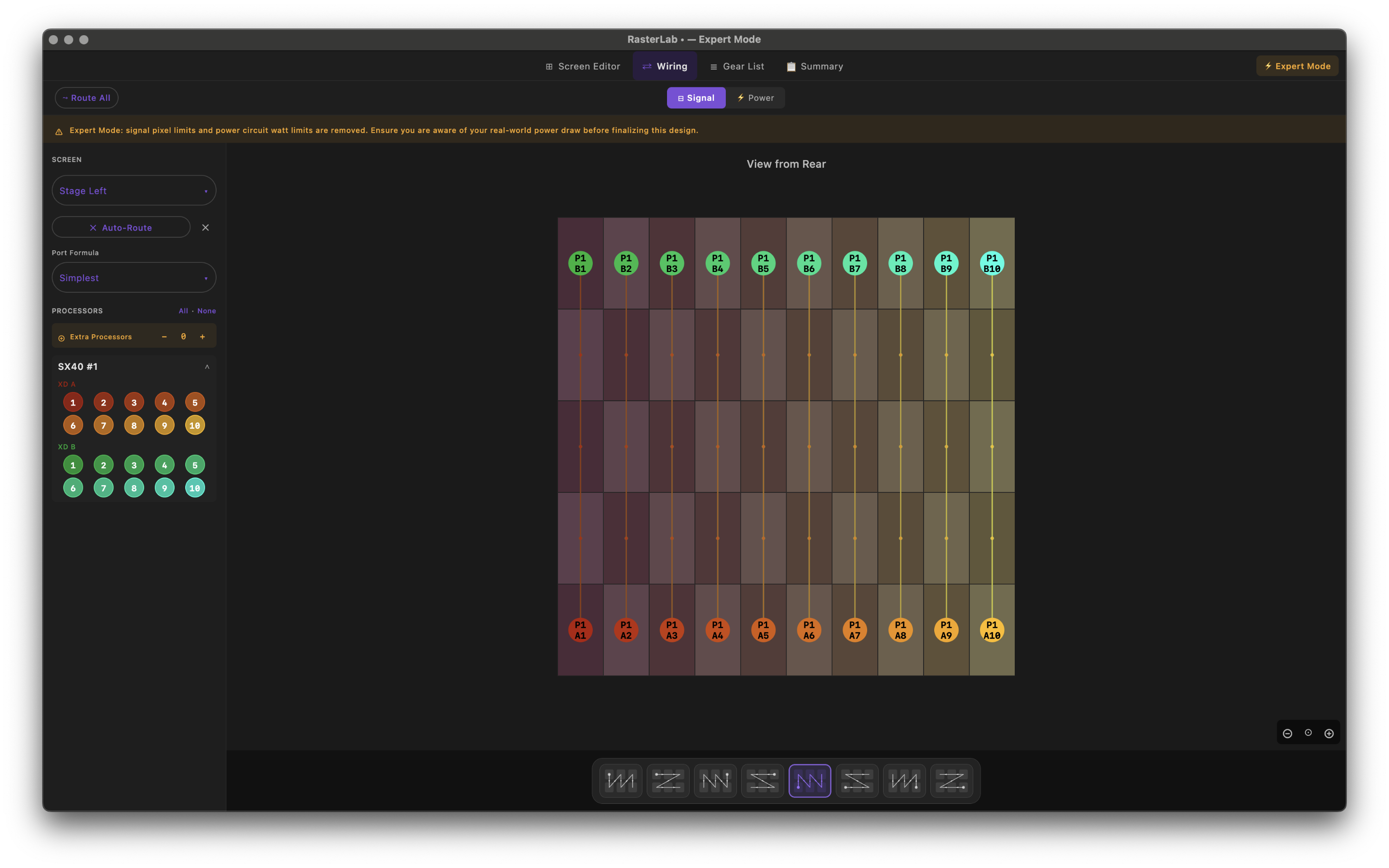

Signal wiring diagram — port assignments and chain routing
Power Wiring

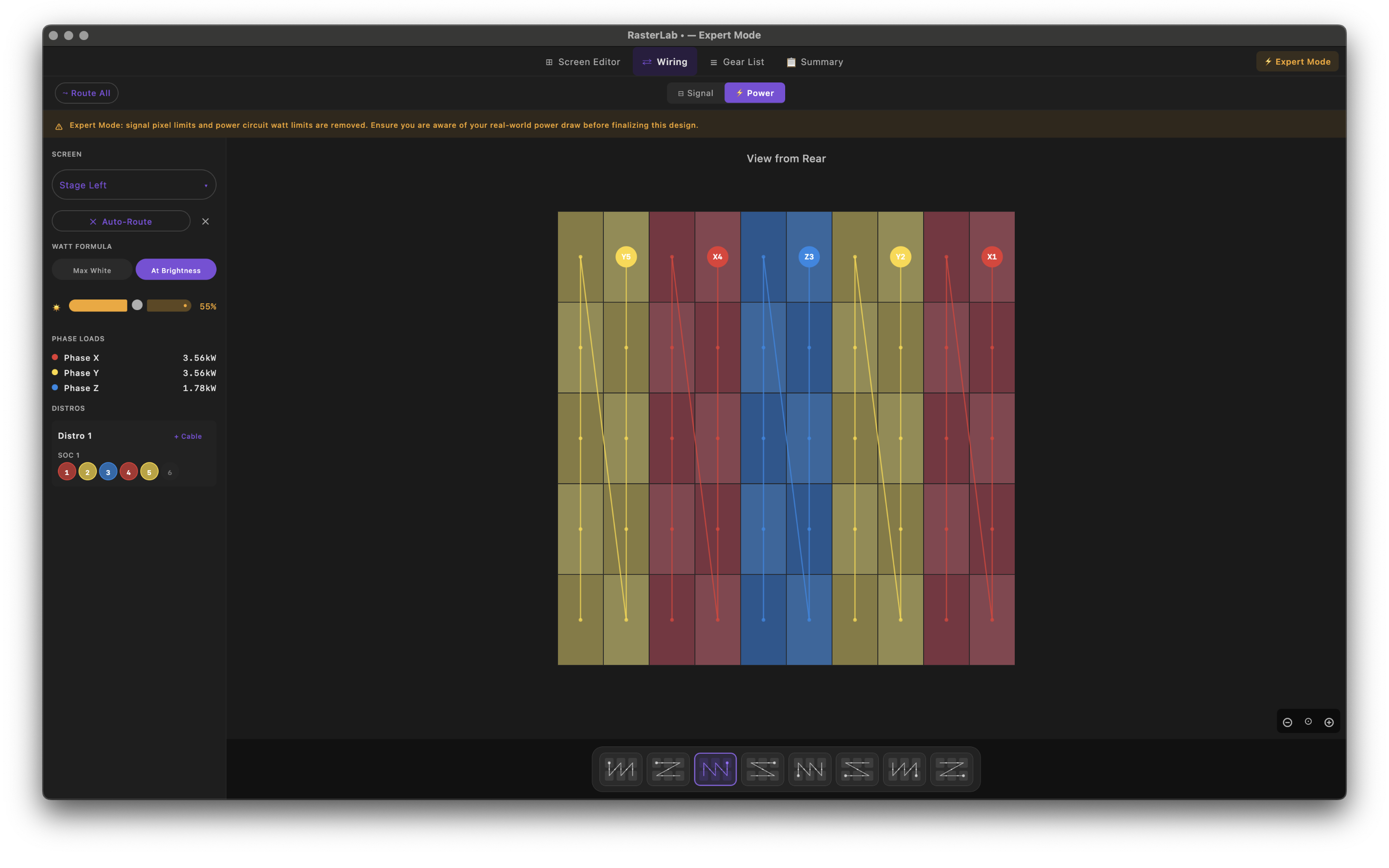

Power wiring layout with Socapex and True1 distribution
Gear List

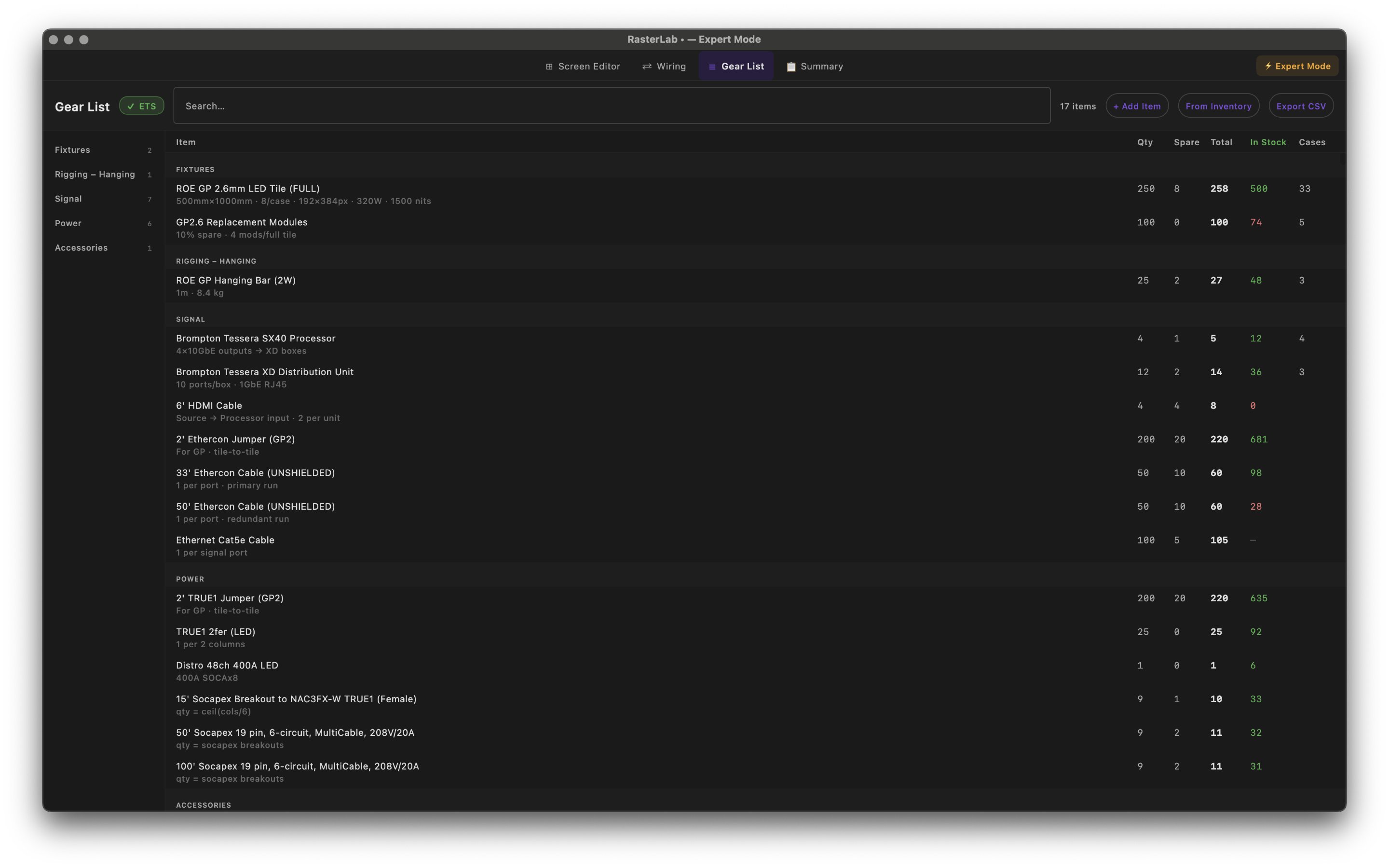

Auto-calculated gear list with inventory integration
Summary Page

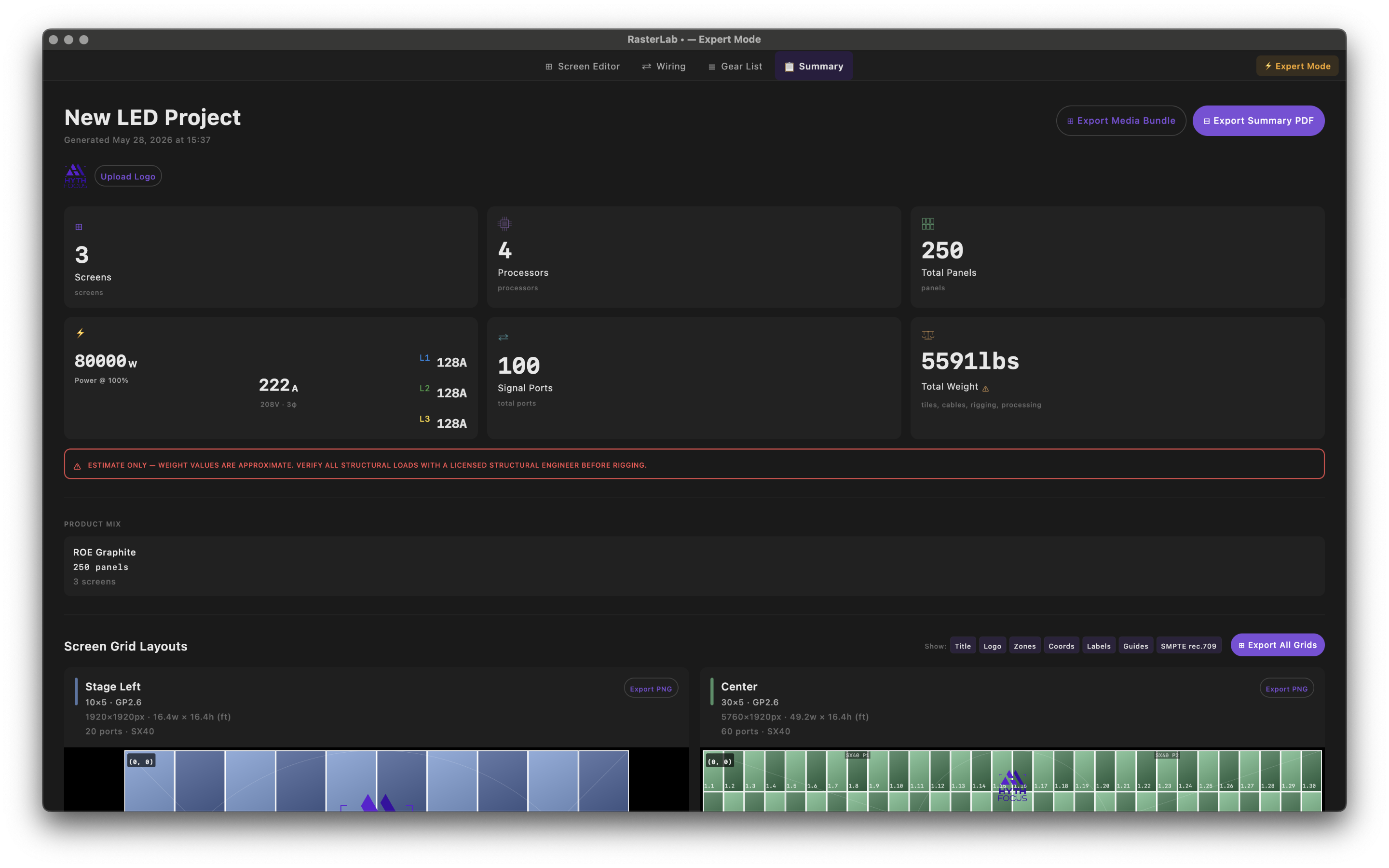

Project summary — totals, specs, and export options
Media Guide
Media guide export with canvas mapping for media servers

System Requirements

Built for macOS

Operating System macOS 14 Sonoma or later
Architecture Apple Silicon (M1+) & Intel
Storage Under 20 MB
Network Not required — fully offline app
Windows / Linux Coming soon

FAQ

Frequently Asked Questions

Not yet! RasterLab is currently only available for macOS but stay tuned because we are working hard to make this available on all platforms!

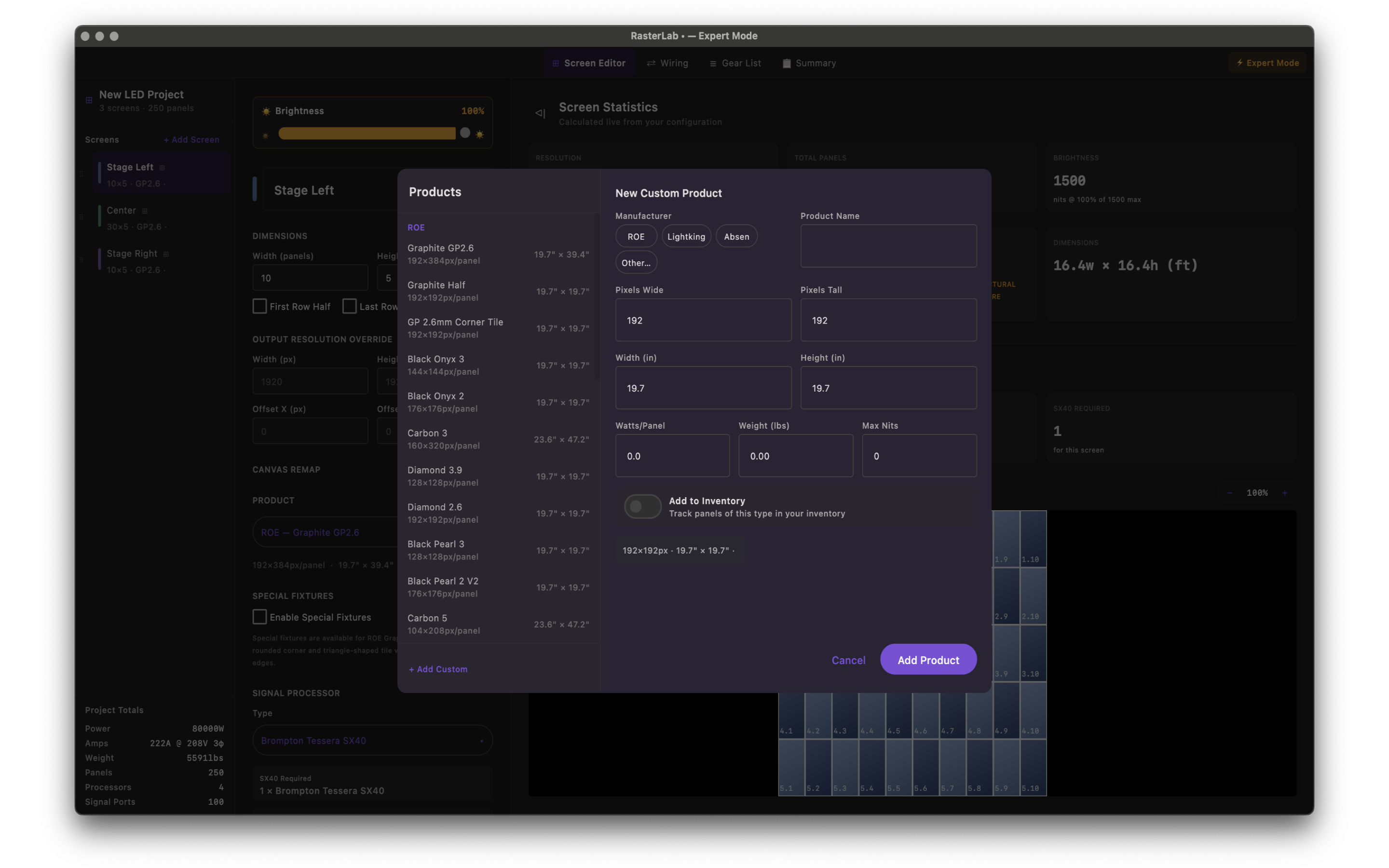

Yes! Our goal is to have as broad of a library as possible to make this as universally useful as possible. RasterLab offers the ability to add Custom Products through the Products > Manage Products… menu in the Taskbar. Using this system you can add all the specifications of a product you use often and RasterLab will auto-calculate just as if it were a built-in product.

Lastly, please visit the Help > Send Feedback… menu, select Product Request, and you can submit any of your custom products or simply detail the name and how to find it (including a URL to the specification documentation, this helps us verify quicker). We will register the new product as a built-in product in a future update. Your help here is greatly appreciated!
Absolutely! You can utilize Expert Mode to unlock a whole range of settings and remove limits. Be careful and make sure you understand power and data limits. RasterLab and its creator are not responsible for incorrectly wired equipment.

Please also help us learn how to make this tool better for everyone by visiting the Help > Send Feedback… menu.
You bet! Make sure to check the changelog for app updates as updates are posted here quicker than on the App Store. Feel free to submit a bug report using the Help > Send Feedback… menu in the Taskbar. If we aren't already aware of the bug, we'll make sure it's fixed in the next patch.

Start planning your next LED show.

Free download. No account required. Works offline.
